Chariot IV XTC-RC Reclining Wheelchair by Proactive Medical – Full 180° Recline, Headrest, Elevating Legrests, 16"–20"

Chariot IV XTC-RC Reclining Wheelchair – Full Recline Without the Full Weight

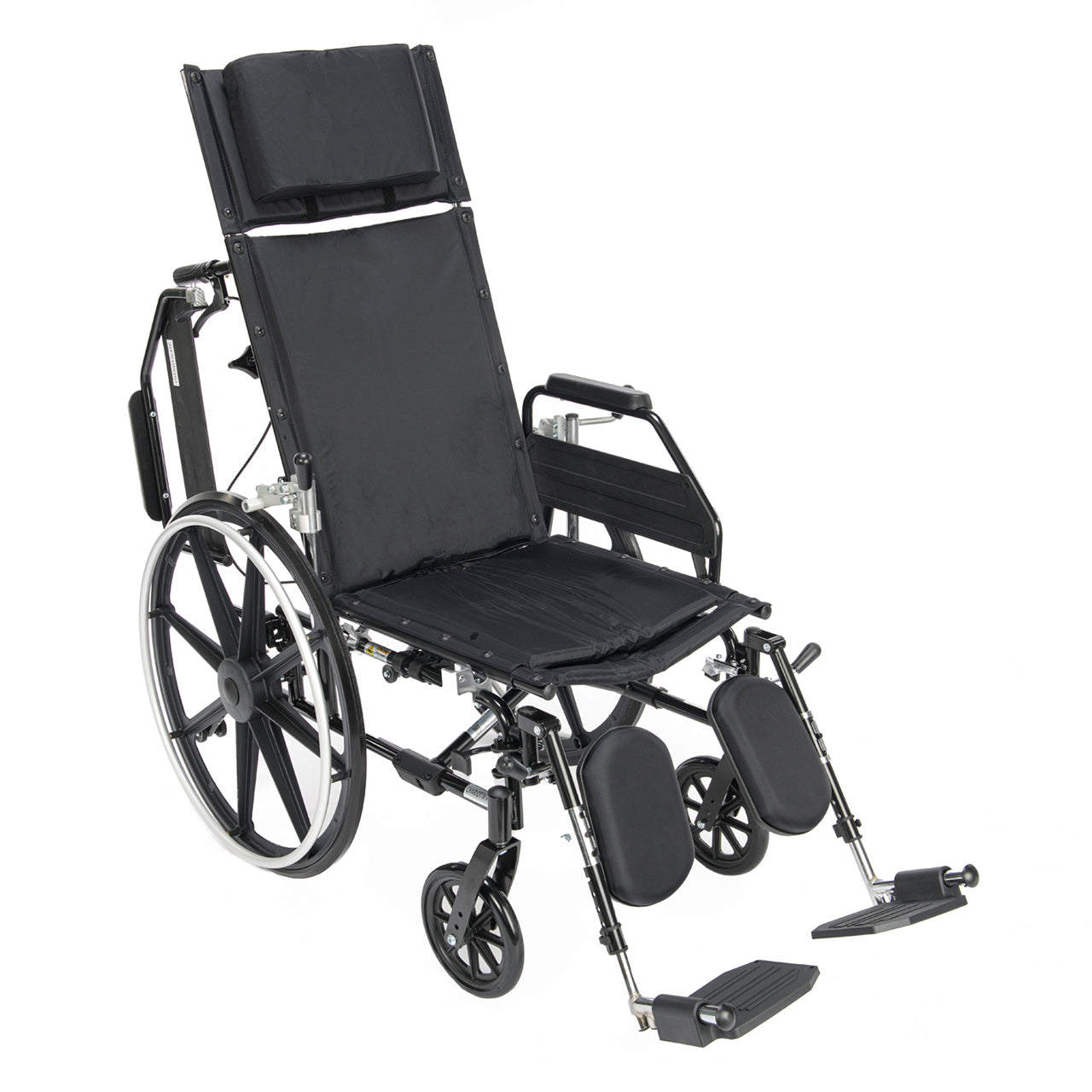

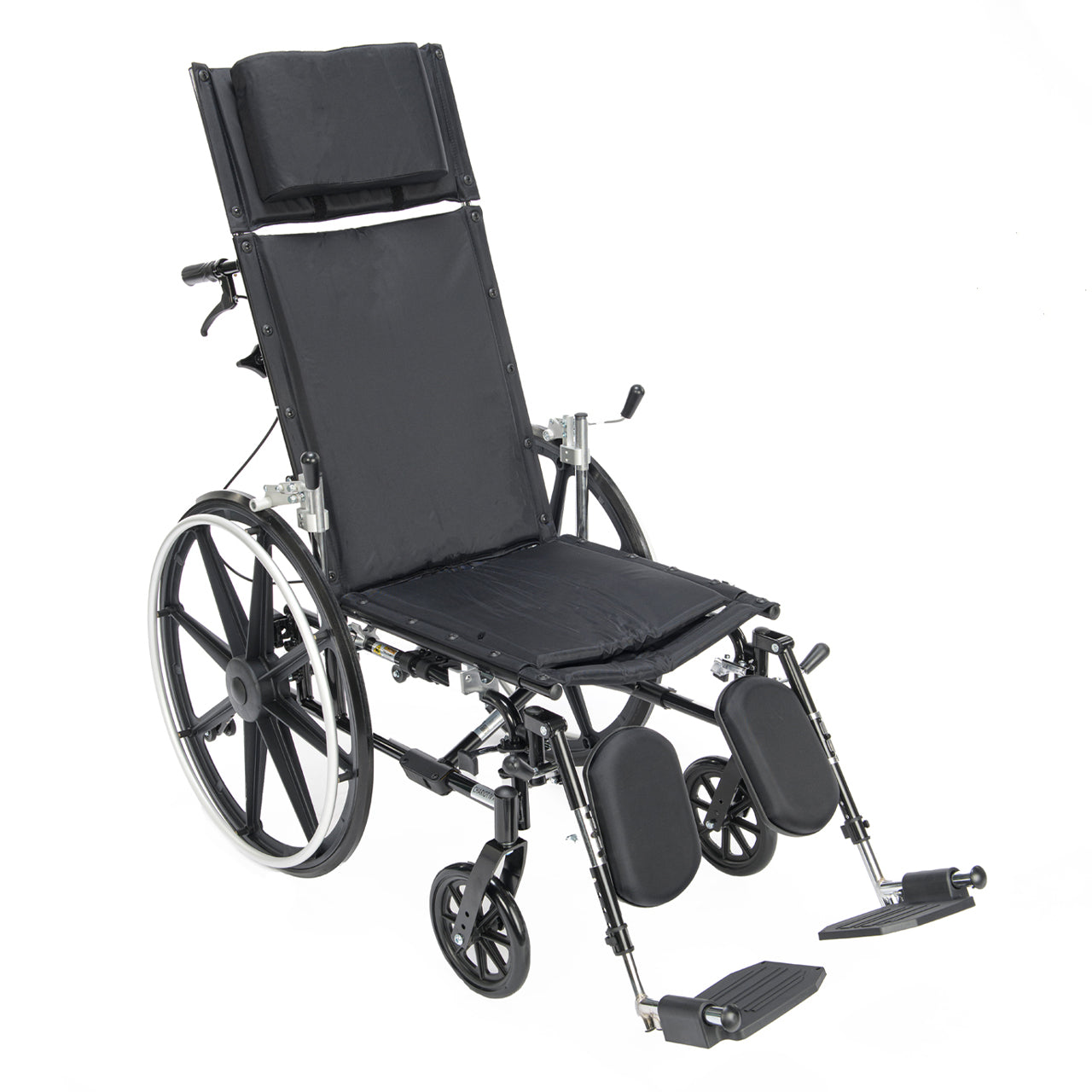

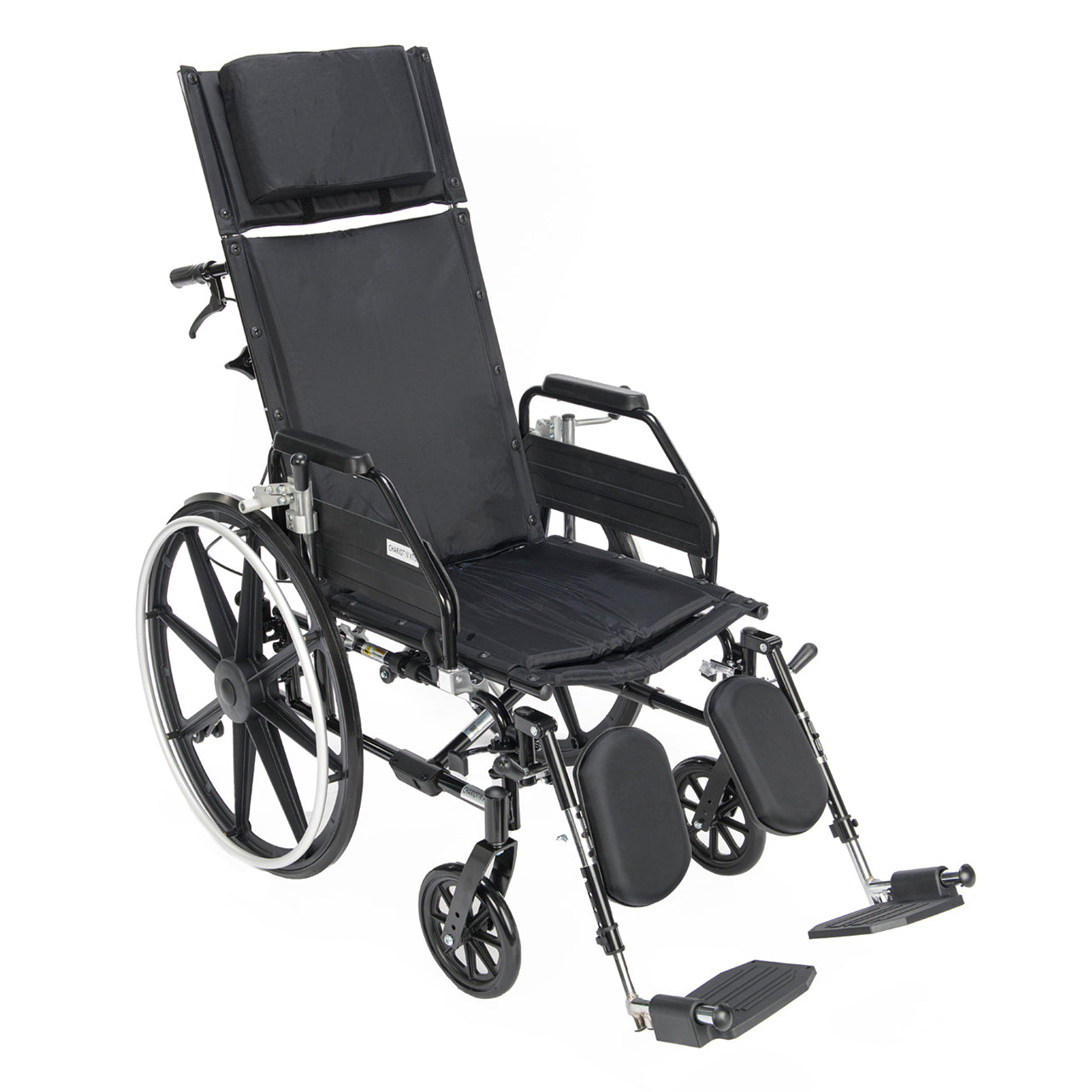

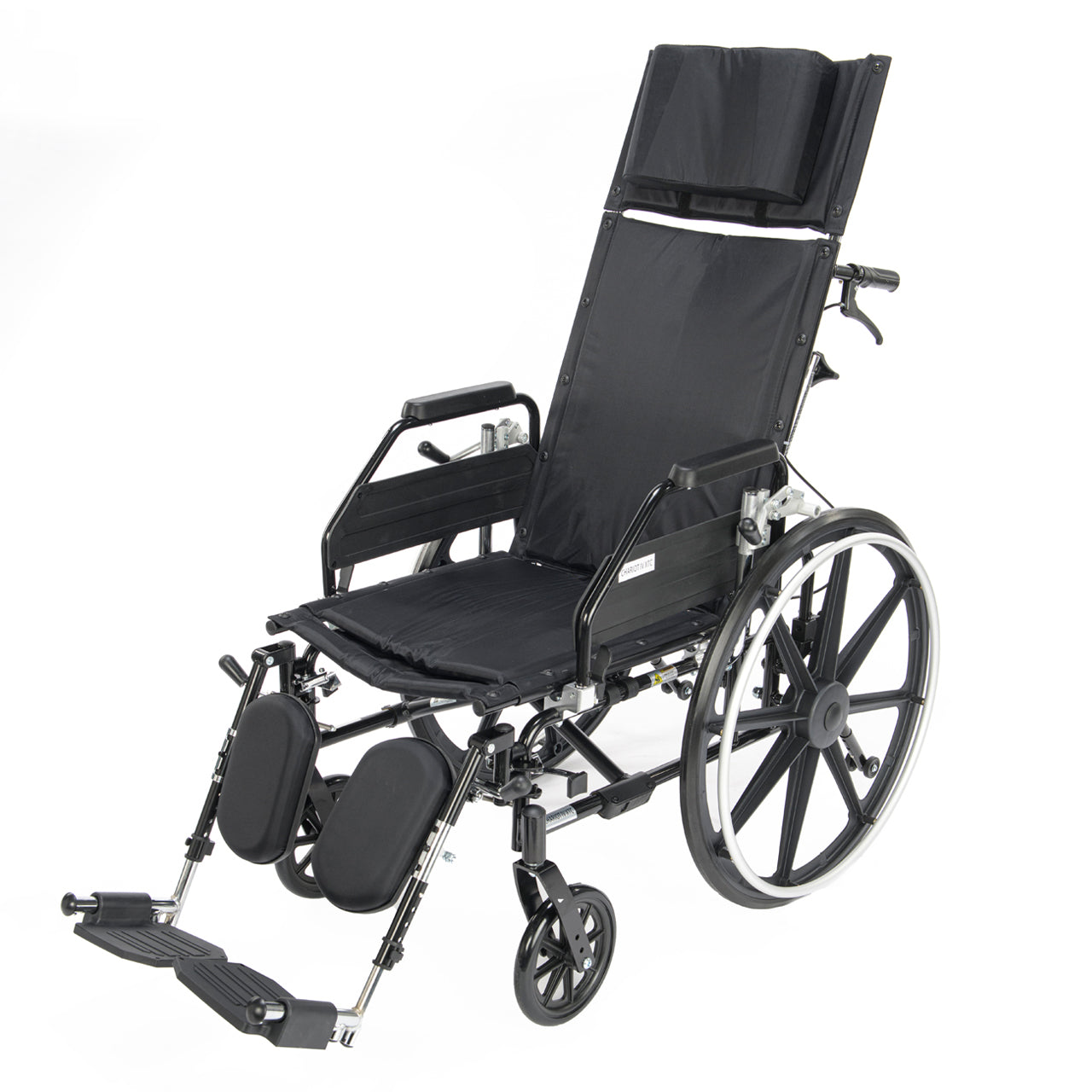

The Chariot IV XTC-RC is the reclining version of Proactive Medical's top K4 wheelchair. The back reclines from upright to flat (90°–180°) on a hydraulic mechanism a caregiver controls from behind, and a detachable padded headrest supports the head at every angle. It comes with elevating legrests, so the whole body can be laid out for pressure relief, a rest, or a nap without a transfer back to bed.

Most reclining wheelchairs weigh 55–60 lb. This one is 47–51 lb, thanks to composite mag wheels and the XTC frame. The rear wheels are set back so the chair can't tip when reclined, a spreader bar doubles as the push handle, and a dual axle gives 19.5" or 17.5" seat height. Choose 16", 18", or 20" wide with flip-back desk or full-length arms.

Limited lifetime warranty on the frame. Medicare code K0004 with E1226 (recline) and K0195 (elevating legrests).

At a Glance

• Reclines 90°–180° on a hydraulic mechanism, caregiver operated
• Detachable padded headrest; 23" back, 33" with headrest

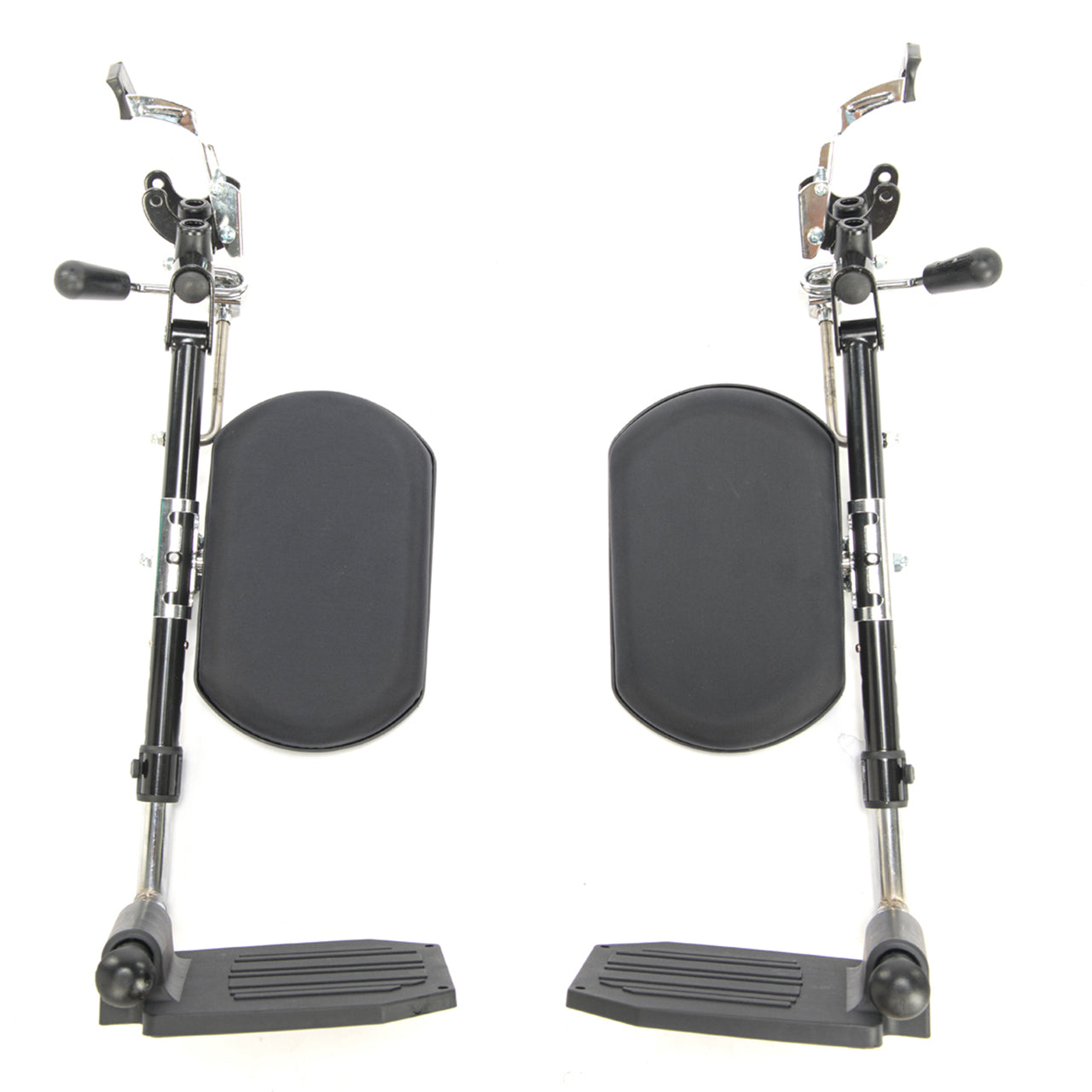

• Elevating legrests with composite footplates, swing-away and removable
• 47–51 lb; light for a full recliner
• 24" composite mag wheels, set back for stability when reclined
• Spreader bar push handle for easy steering
• Dual axle: 19.5" standard or 17.5" hemi seat height
• Flip-back padded arms in desk or full length; seat depth 16" or 18"

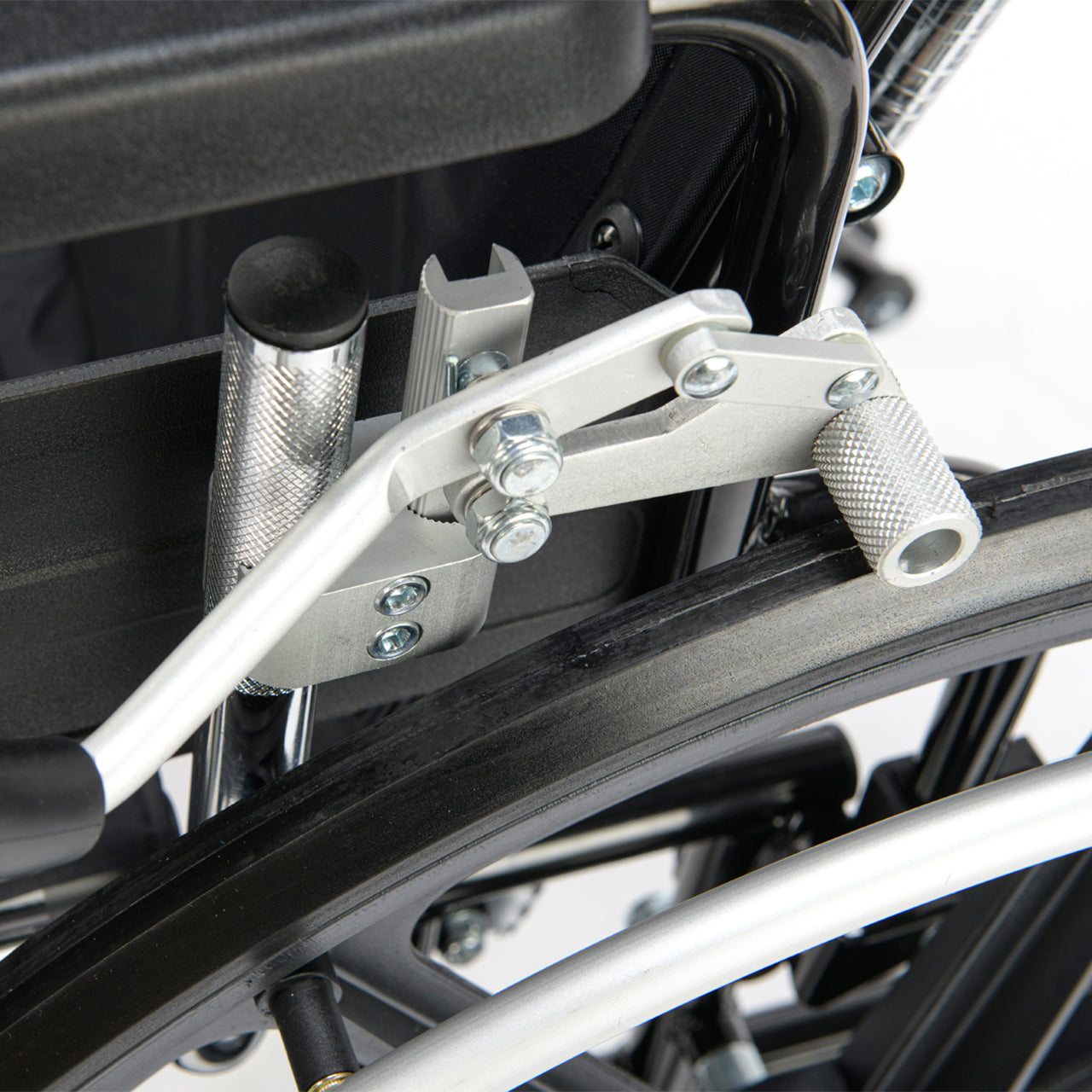

• 8" urethane casters on three-position forks; push-to-lock brakes
• 300 lb capacity; limited lifetime frame warranty

Who It's Best For

• Users who cannot sit upright for long and need to change position through the day
• Pressure-injury prevention: reclining shifts weight off the tailbone and thighs
• Anyone who needs to rest or nap in the chair rather than transfer to bed
• Caregivers who push and reposition the user; the spreader bar and light frame make it easier
• Low blood pressure or fainting episodes where the user needs to be laid flat quickly

XTC-RC or Chariot-RC?

We carry two reclining Chariots. This XTC-RC is the lighter, K4-class chair with mag wheels and a lifetime frame warranty, in 16"–20" seats rated to 300 lb. The Chariot-RC is the heavier steel chair (58–62 lb) that goes up to 24" wide and 500 lb and costs about a third less. If the user is under 300 lb and anyone will lift the chair into a car, choose this one. For a non-reclining chair with the same frame, see the Chariot IV XTC.

Why the Details Matter

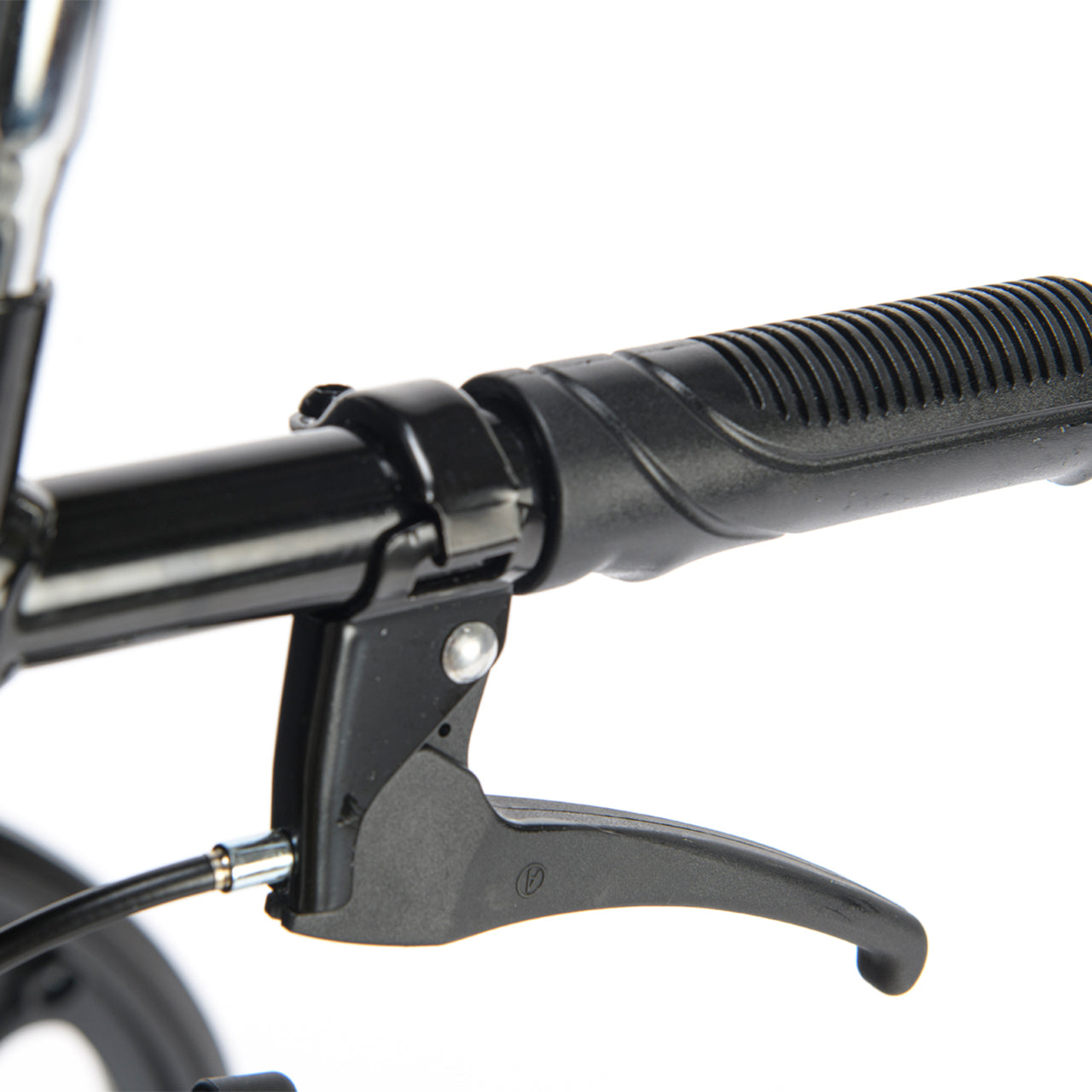

Hydraulic recline. Squeeze the levers on the push handles and the back lowers under control, no sudden drops. It stops anywhere between upright and flat, so a slight 110° recline for TV and a full 180° for a rest are both a squeeze away.

Set-back rear wheels. When a back reclines, the user's weight moves behind the axle. Moving the wheels rearward keeps the chair planted. The trade-off is a longer chair that turns in a wider circle; measure hallways and bathroom doors.

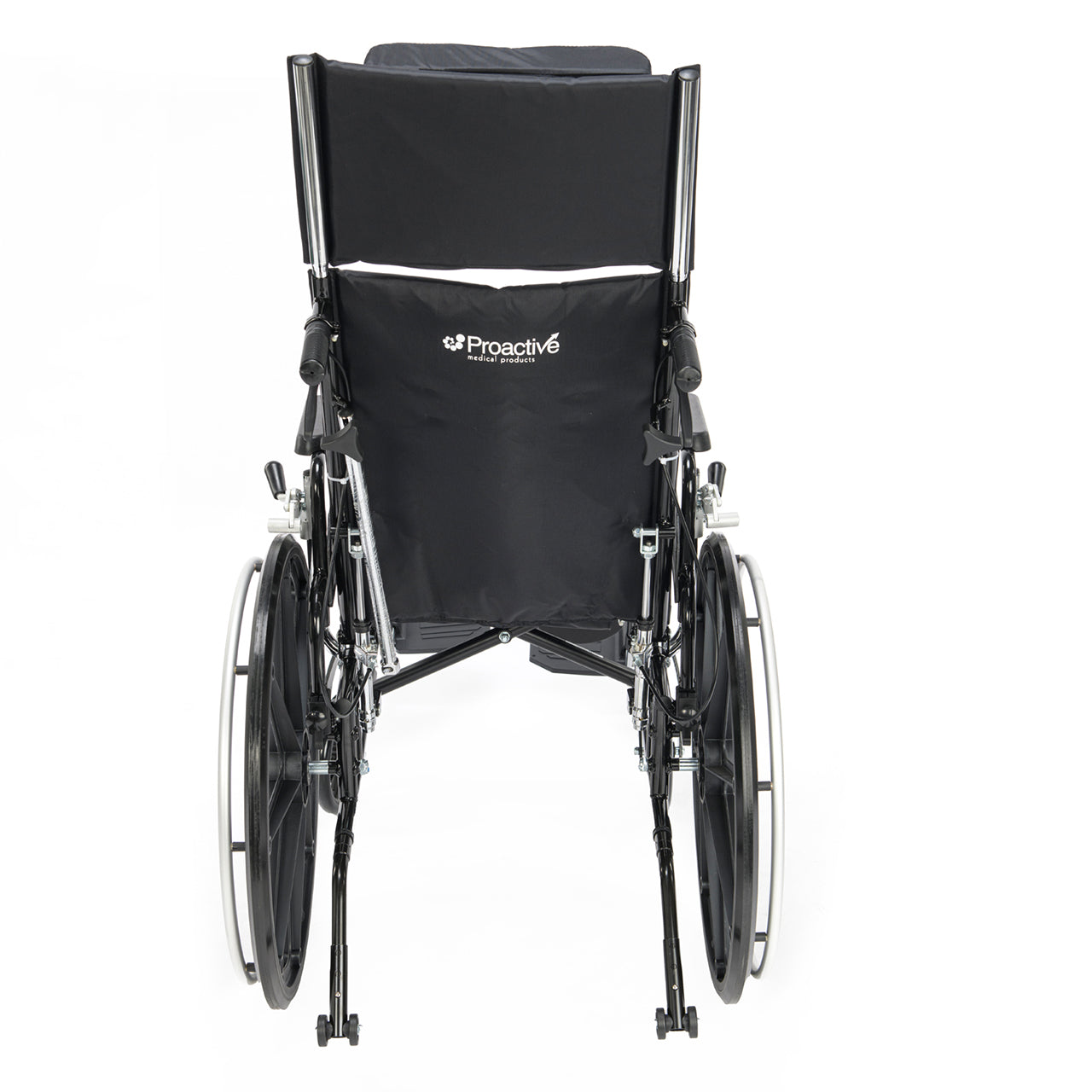

Spreader bar. The bar across the back canes stiffens the frame and gives the caregiver a single handle to steer with one hand while the other steadies the user.

Specifications

What's Included

• Chariot IV XTC-RC reclining wheelchair in your chosen width and arm style
• Detachable padded headrest
• Pair of elevating legrests
• Spreader bar push handle

Good to Know Before You Buy

• Measure hip width seated, then add about 2" for the seat width. Overall width is about 8" more than the seat; check doorways.
• It is a long chair. Set-back wheels plus raised legrests mean more length than a standard chair, especially reclined. Measure the turning space in bathrooms and hallways.
• Recline is caregiver operated. The levers are on the push handles behind the user.

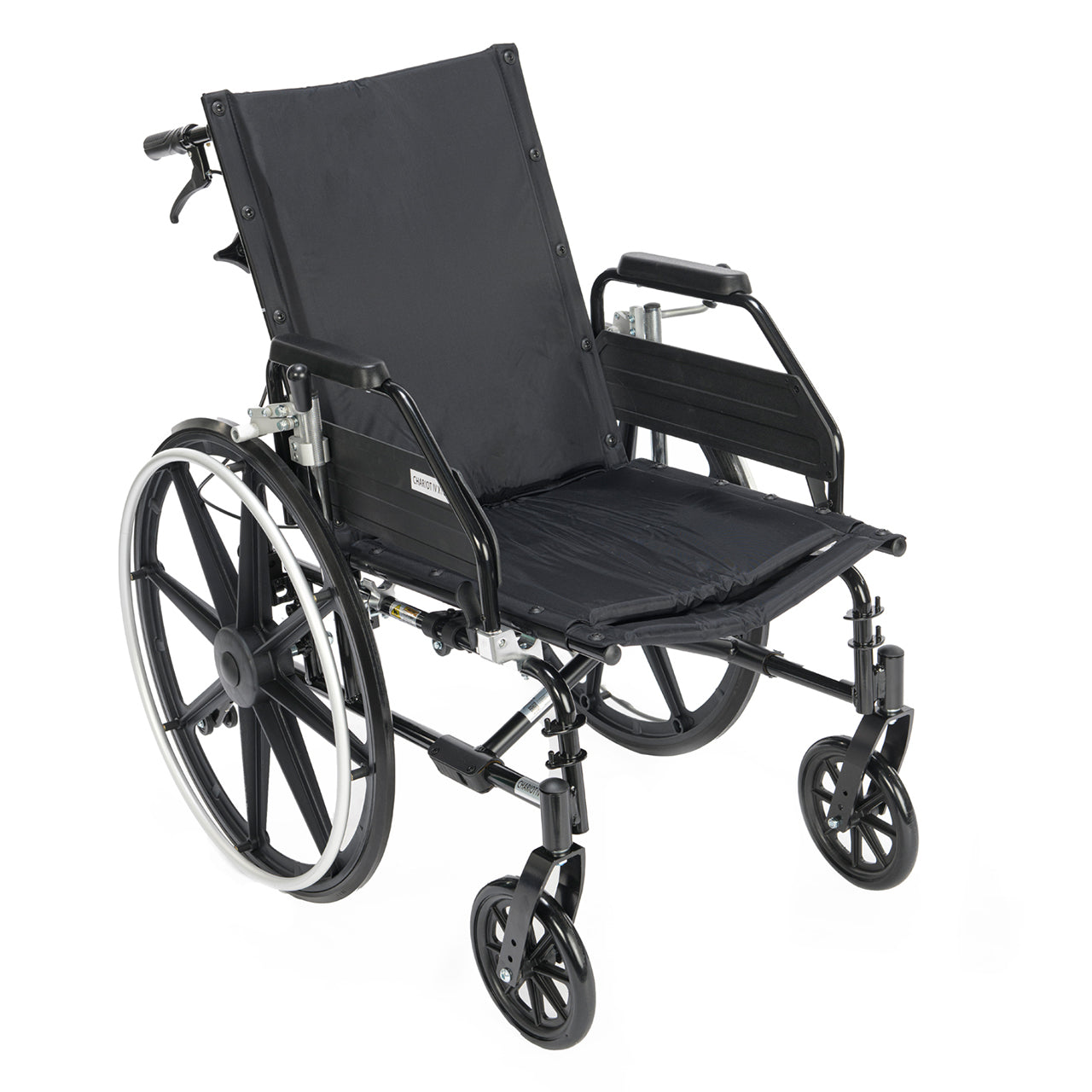

• Desk or full arms. Desk arms pull under a table; full-length arms give more support when reclined and more to push on when standing.
• Cushion not included. Add a pressure-relief cushion for anyone spending long hours in the chair; see our wheelchair cushions.

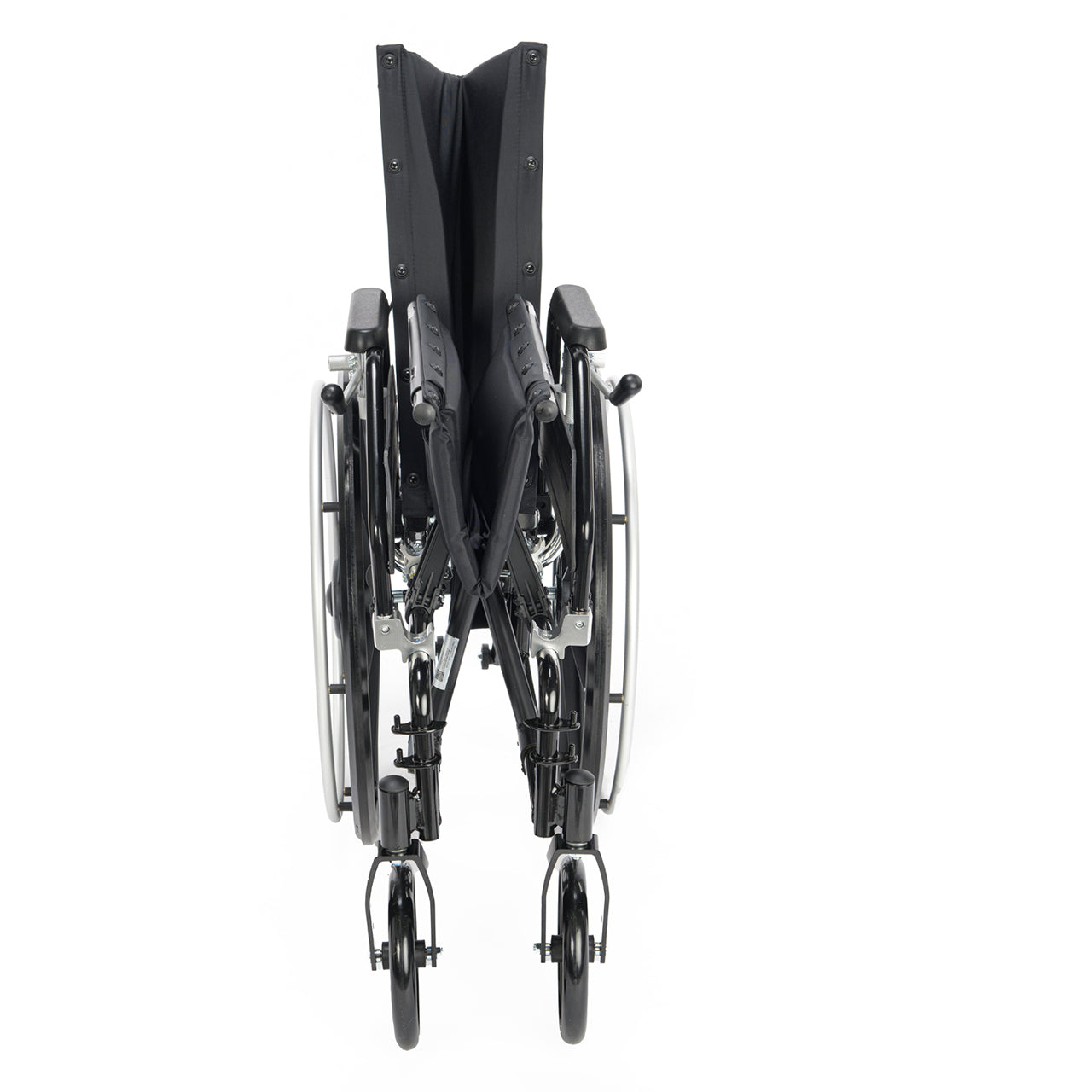

• Shipping: ships folded in one carton; attach headrest and legrests.

Warranty

Proactive Medical covers the Chariot IV XTC-RC side frames and cross braces with a limited lifetime warranty and other components for 3 years against defects in materials and workmanship. Upholstery, tires, and other wear parts, and damage from misuse or unauthorized modification, are not covered.

Why Buy from Independent Living Superstore

Independent Living Superstore is a veteran-owned, family-run company committed to helping individuals, families, and caregivers find practical products that support comfort, dignity, independence, and safer daily routines at home.

Unlike large marketplace retailers, we carefully select mobility, accessibility, and home care products designed to address real-world challenges. Our team focuses on dependable solutions, honest product information, and responsive support before and after purchase.

• Service-Disabled Veteran-Owned Small Business (SDVOSB)
• BBB Accredited Business
• Veteran-owned and family-run
• Responsive customer support
• Carefully selected mobility and home care products
• Faith-driven values centered on compassion, integrity, and service
• No sales tax outside New York

Pay over time with Shop Pay Installments or Affirm at checkout. Military, veterans, and first responders save 5% through GovX ID. Independent Living Superstore is a direct-to-consumer retailer and does not bill Medicare, Medicaid, or private insurance.

Disclaimer

This product is intended to assist with mobility and positioning. It is not intended to diagnose, treat, cure, or prevent any condition. A therapist can confirm the right seat size, recline schedule, and cushion for the user.
